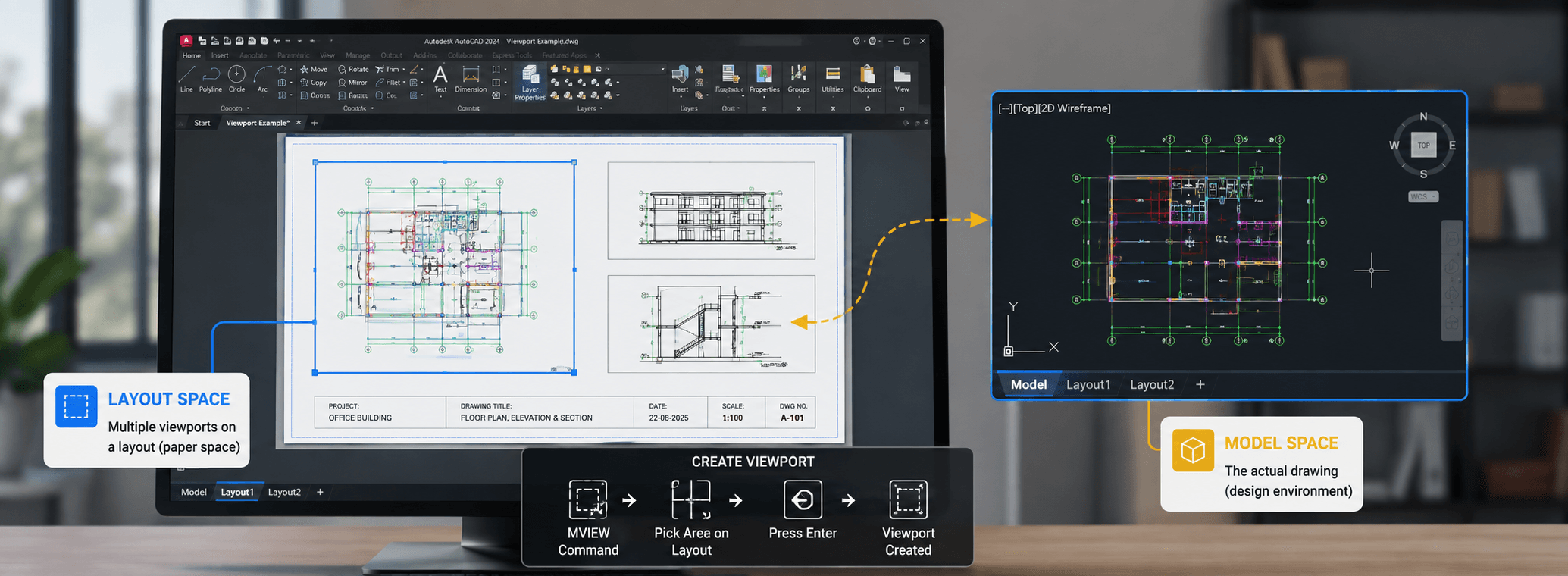

How to Create a Viewport in AutoCAD (Layout & Model Space)

Model Space vs. Paper Space: Why You Need Both

The first thing to understand is that there’s a big difference between model space and paper space. If you’ve ever opened a drawing and seen a strange dashed rectangle around a plan—and your commands didn’t work the same way—you’ve seen the difference in action.

Why Paper Space Layouts Are Essential for Professionals

• You can create multiple views of your 3D model (top, front, isometric) on the same sheet.
• You can scale each viewport independently to create detail views and enlarged plans.
• You can freeze different layers in different viewports for clean, readable sheets .
• You can plot directly from paper space with title blocks, notes, and labels.

Preparing Your Drawing for Viewport Creation

Before you create a viewport in AutoCAD, it’s critical to make sure your model space drawing is clean and complete. The viewport is literally a “window” to your model space—so prepare the view, not the window.

• Clean up your drawing: Purge unused layers, blocks, and styles. Any visible entities will appear in your viewport.
• Set up your units: Use UNITS command to define drawing units (millimeters, inches, etc.). Viewport scales work best with consistent units.
• Create named views: Save specific views using the VIEW command. This lets you automatically create a viewport with the correct view and initial scale.
• Plan your sheet: Know your final paper size (A4, A3, ANSI D, etc.). Your paper space sheet size must match or be scaled to your intended output.

4 Methods to Create a Viewport in AutoCAD

There are several ways to create a viewport in AutoCAD, from simple rectangles to advanced named-view workflows. Here are the four most effective methods, each suited to a different scenario.

Method 1: The MVIEW Command (The Classic Way)

The MVIEW command is the standard way to create layout viewports. It’s simple, fast, and offers multiple options. Use the command line version MVIEW or the -VPORTS command for full control.

1. Switch to your layout tab at the bottom of the screen.
2. Type MVIEW and press Enter.
3. Specify the first corner of your rectangular viewport.
4. Specify the opposite corner. A rectangular viewport appears.
5. Double-click inside it to enter model space and adjust your view.

Method 2: Using Named Views (The Smartest Way)

This is the most efficient method if you use named views. It’s a major time-saver.

1. Go to the layout tab. The Layout contextual ribbon appears.
2. In the Layout Viewports panel, find and click the largest icon—the one that looks like a viewport with a drop-down arrow [citation:1].
3. A dropdown will appear listing all your saved named views from model space.
4. Select the named view you want to display. AutoCAD creates a viewport sized exactly to that view, and automatically applies the correct scale [citation:1].

This is the “coolest” feature that most beginners overlook [citation:1]. If you don’t have a named view, the tool even lets you define one on the fly.

Method 3: Polygonal or Irregular Viewports

You’re not limited to rectangles. To create a viewport in a non-rectangular shape [citation:1]:

1. Type MVIEW and press Enter.
2. Enter P for Polygonal.
3. Pick points to define the irregular boundary.
4. Press Enter to complete the polygon. A viewport with that shape is created.

Method 4: Convert an Object to a Viewport

You can turn any closed 2D object (circle, ellipse, closed polyline, or spline) into a viewport.

1. Draw a circle, ellipse, or closed polyline in paper space.
2. Type MVIEW and press Enter.
3. Enter O for Object [citation:1].
4. Select the closed object. It instantly becomes your viewport.

Scaling Your Viewport: A Step-by-Step Guide

Once you’ve learned how to create a viewport, the next step is to scale it properly. Scaling is what makes paper space powerful. Here are the steps to get it right.

The #1 Rule: Lock Your Viewport

This is not optional—it’s the most important rule in paper space. Once the view is properly set and scaled, lock the viewport [citation:1].

“Once the view is properly set up… LOCK THE VIEWPORT.” — Autodesk Blog [citation:1]

• Why lock? Locking prevents accidental zooming or panning from within the viewport. This is the number one cause of plots being wrong or sheets looking inconsistent.
• How to lock: Select the viewport border, right-click, choose Display Locked > Yes [citation:14]. Alternatively, use the Properties palette (Ctrl+1) and set Display Locked to Yes.
• To unlock: Select the viewport border, right-click, choose Display Locked > No [citation:14].

How to Rotate a Viewport in AutoCAD

Sometimes you need to rotate the view inside a viewport to better fit a sheet or align with a title block. Here is how to make it happen.

• Using the DVIEW Command: This is the most common method.
  1. Double-click inside the viewport to activate it.
  2. Type DVIEW and press Enter.
  3. Enter TW for Twist.
  4. Specify a rotation angle (e.g., 30 degrees). The view rotates inside the viewport.
• Alternative: Use the VPOINT command to change the 3D viewing angle, though this is more common for 3D views.
• Important: The viewport itself is not rotated; the view inside the viewport is rotated. This preserves the viewport’s scale and geometry while adjusting the angle.

Mastering Per-Viewport Layer Management

This is one of the most powerful features in paper space: layer settings specific to a viewport. You can freeze a layer in one viewport while keeping it thawed in another [citation:1].

• How to do it: Activate the viewport (double-click inside it). Open the Layer Properties Manager. In the column labeled VP Freeze (or Viewport Freeze), click the icon to freeze that layer in the current viewport only.
• New VP Freeze: If you want a layer to be automatically frozen in all future viewports, set the New VP Freeze option .
• Why this matters: Imagine a floor plan on a sheet. In your main viewport, you show all layers. In your detail viewport (a bathroom), you freeze the structural layers and show only plumbing and fixtures. The result is a clean, readable sheet.

5 Pro Tips for Viewport Efficiency

To truly master how to create a viewport in AutoCAD and speed up your workflow, use these pro-level tips.

• Tip 1: Use the VPMAX Command — Activate a viewport and use VPMAX to temporarily maximize it to the full screen. Work on your view, then use VPMIN to return to the layout.
• Tip 2: Clip a Viewport — If you have a rectangular viewport and want an irregular shape, use the VPCLIP command. Select the viewport and a polyline (or existing object) to clip it to a new boundary.
• Tip 3: Control Viewport Borders — Place viewport borders on a dedicated, non-plotting layer (like a layer named “VPORTS”) and set it to not plot. Never use the Defpoints layer for this [citation:1].
• Tip 4: Use Quick Properties — When a viewport is selected, press Ctrl+Shift+P to open the Quick Properties palette. Here you can quickly change scale, lock status, and other settings.
• Tip 5: Annotation Scale and Viewport Scale — When you change the viewport scale, the annotation scale updates to match [citation:3]. This ensures annotative objects (like text and dimensions) are always the correct plotted size.
